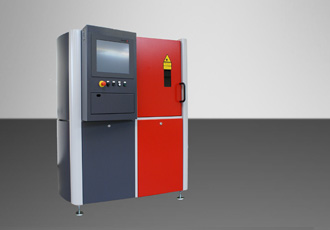

Series BL5000
Our experts have concentrated their many years of know-how in the series BL5000 and re-planned and
re-designed the system completely according to the latest state of the art. This series is available for the
flexible, industrial use as an extremely flexible laser engraving and inscription machine in professional
design. The BL5000 is equipped with a state-of-the-art maintenance-free fibre laser, which guarantees
extremely low running and maintenance cost.
Thanks to a CNC-controlled Z-axis as a standard, the setting of the focus can be done conveniently and within a very short time. The standard touch screen facilitates the operation. As a fully encapsulated machine, the equipment complies with laser protection class 1, which means that no further safety installations are necessary for its operation.
Optionally, the BL5000 series can also be fitted out with alternative laser sources.
Please contact us:
Phone: +49 (0) 71 41 / 85 35 0
E-mail: sales@baublys.de
Subject to technical changes.
Thanks to a CNC-controlled Z-axis as a standard, the setting of the focus can be done conveniently and within a very short time. The standard touch screen facilitates the operation. As a fully encapsulated machine, the equipment complies with laser protection class 1, which means that no further safety installations are necessary for its operation.
Optionally, the BL5000 series can also be fitted out with alternative laser sources.
Please contact us:
Phone: +49 (0) 71 41 / 85 35 0
E-mail: sales@baublys.de
Subject to technical changes.
Laser type
| UV laser |
Green laser |
Fibre laser |
CO2 laser |
Wave length
| 355 nm |
532 nm |
1064 nm |
10,6 μm |
Pulse rate
| 10 - 200 kHz |
10 - 200 kHz |
20 - 200 kHz |
cw |
Power
| 3 - 8 W |
10 - 20 W |
10 - 100 W |
10 - 50 W |
Inscription area
| on request |
max. 480 x 480 mm |
max. 480 x 480 mm |
on request |
Control
CNC control
System software
Windows 7
Measurements
1,493 x 860 x 1,777 mm (L x W x H)
Network connection
Yes
HMI Interface
The control and programming software based on Windows 7 system software combines a modern look, decades of experience in the areas of engraving and marking and ensures intuitive and simple programming.
CNC axes
For extending the marking area.
Rotary table
Semi-automatic solutions can be realised. Loading/unloading times are reduced to almost zero.
Indexing attachments
Allows the carrying out of rotative inscriptions. Different versions are available.
Lenses
Different versions make it possible to adapt inscription area and quality.
Custom devices
To increase the efficiency of the equipment, optional custom devices can be delivered.
Further options
• Sign magazine
• Camera systems
• Laser pointer
• Varioscan
• Extractor systems
• Software options
• Interfaces
• QR Code / Datamatrix
• Camera systems
• Laser pointer
• Varioscan
• Extractor systems
• Software options
• Interfaces
• QR Code / Datamatrix
