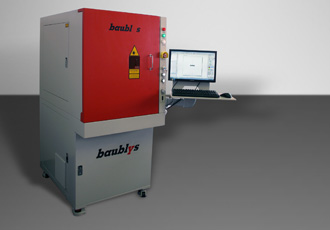

Series BL3000
Compact, robust, reliable, these are the characteristics of the BL3000 series. A machine with simple
and time-proven technology paired with the latest laser technology is available at an extremely attractive
price. A large processing space increases the user’s flexibility.
All marking jobs can be carried out universally in all areas. As a laser source, all current laser types are available for this machine as well.
Please contact us:
Phone: +49 (0) 71 41 / 85 35 0
E-mail: sales@baublys.de
Subject to technical changes.
All marking jobs can be carried out universally in all areas. As a laser source, all current laser types are available for this machine as well.
Please contact us:
Phone: +49 (0) 71 41 / 85 35 0
E-mail: sales@baublys.de
Subject to technical changes.
Laser type
| UV laser |
Green laser |
Fibre laser |
CO2 laser |
Wave length
| 355 nm |
532 nm |
1064 nm |
10,6 μm |
Pulse rate
| 10 - 200 kHz |
10 - 200 kHz |
20 - 200 kHz |
cw |
Power
| 3 - 8 W |
10 - 20 W |
10 - 50 W |
10 - 50 W |
Inscription area
| on request |
max. 160 x 160 mm |
max. 160 x 160 mm |
max. 300 x 300 mm |
Control
NC control
System software
Windows 7
Measurements
800 x 1,148 x 1,750 mm (L x W x H)
Network connection
Yes
HMI Interface
The control software has deliberately been kept
simple to facilitate the introduction of laser technology.
Windows 7 as the system software ensures
a trouble-free application and makes intuitive,
simple programming possible.
Lenses
Different versions make it possible to adapt inscription area and quality.
Indexing attachments
Small and compact for circumferential inscriptions or marking of rotationally symmetrical parts.
Barcode module
For easy and comfortable creation of codes and subsequent labeling of workpieces.
Exhaust system
Powerful devices for extraction of organic and inorganic particles.
